EOD Suit 02

Product Information

• This type of bomb suit is designed as special clothing equipment especially for
• Public Security and armed Police departments, for the personnel dressing to remove or
• dispose of small explosives. It provides the highest level of protection to the personnel
• currently, whilst it offers the maximum comfort and flexibility to the operator.
• The Cooling suit is used to provide a safe and cool environment for explosive
• disposal personnel, so that they can carry out explosive disposal work efficiently and
• intensively.
• Product catalog
• EOD Suit 02 Details
• Bulletproof Mask
• Thickness
• 22.4mm
• Weight
• 1032g
• Material
• Organic transparent composite
• Bulletproof Helmet
• Size
• 361×273×262mm
• Protective Area
• 0.25m2
• Weight
• 4104g
• Material
• Kevlar composites laminated

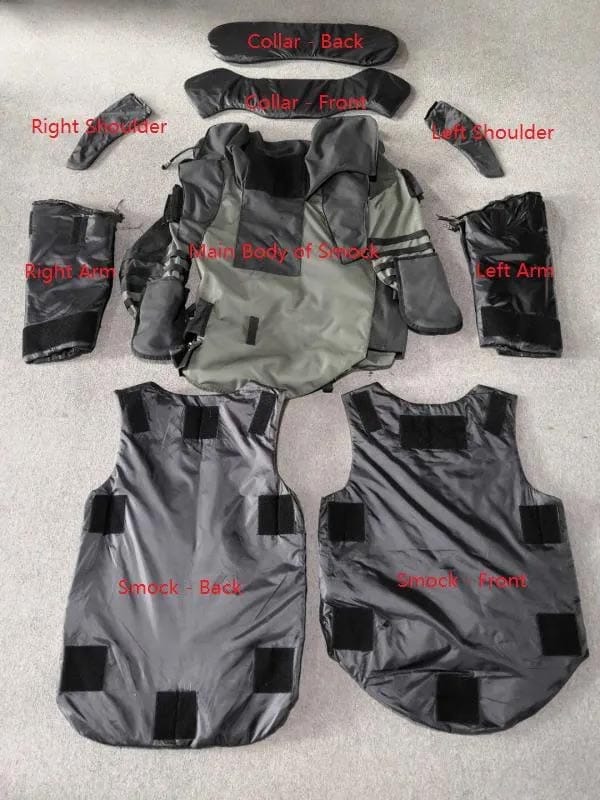

• The front of the smock
• (Main body of smock)
• Size
• 580×520mm
• Weight
• 1486g
• Material
• 34-layer woven fabric (Aramid fiber)
• Blast plate The front of
• smock
• Throat Plate Dimension
• 270×160×19.7mm
• Throat Plate Weight
• 1313g
• Abdominal Plate Dimension
• 330×260×19.4mm
• Abdominal Plate Weight
• 2058g
• Arm (Right Arm,Left Arm)
• Size
• 500×520mm
• Weight
• 1486g
• Material
• 25-layer woven fabric (Aramid fiber)
• The back of thigh and calf
• (Left and Right Thigh,
• Left and Right Shin)
• Size
• 530×270mm
• Weight
• 529g
• Material
• 21-layer woven fabric (Aramid fiber)
• The front of shin
• (Left and Right Outer)
• Size
• 460×270mm
• Weight
• 632g
• Material
• 30-layer woven fabric (Aramid fiber)
• Bomb Suit Total Weight
• 32.7kg (without helmet+mask+cooling suit)
• Power supply
• 12V battery
• Communication system
• wired communication system, compatible with most communication systems
• Cooling fan
• 200 liters/min, adjustable speed

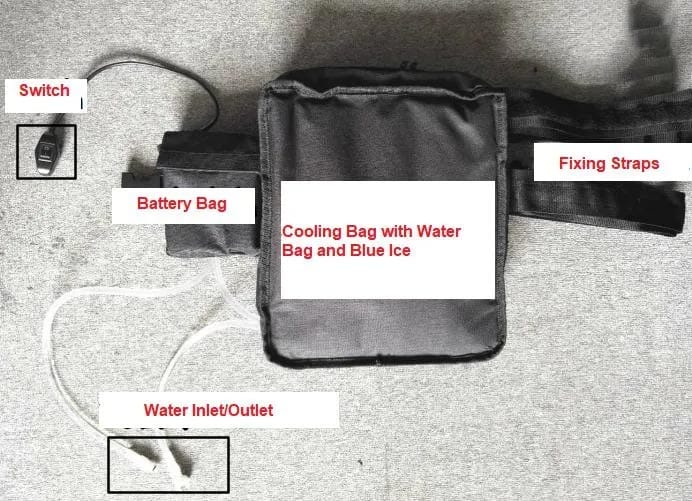

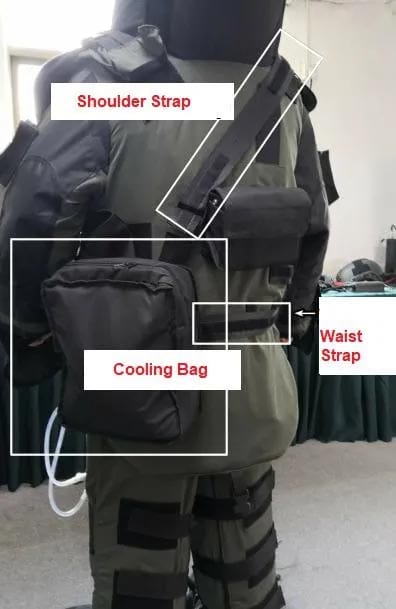

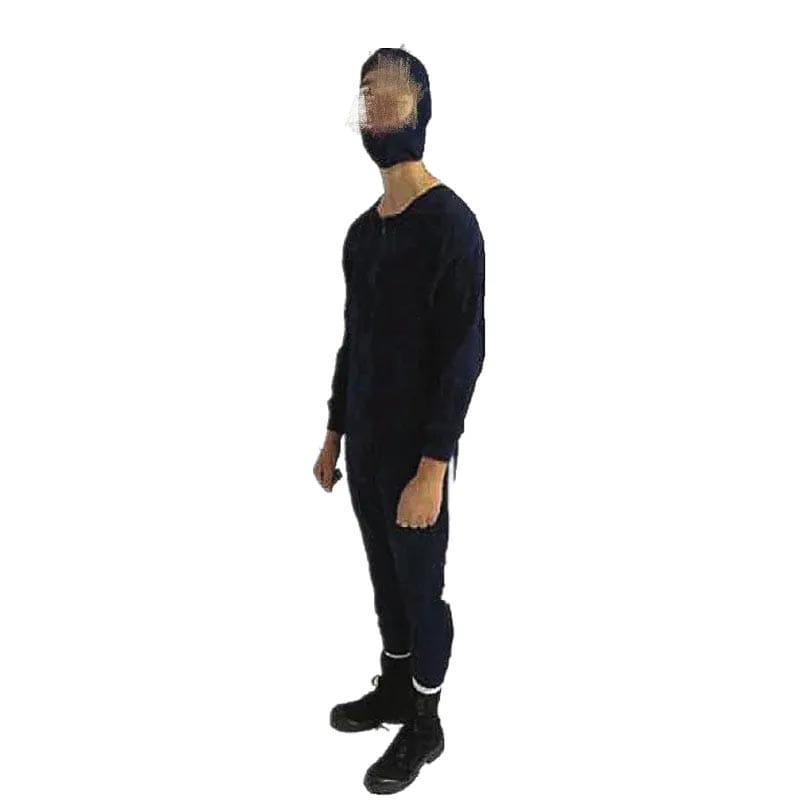

• Cooling suit
• Clothes weight
• 1.12 kg
• Water-cooled package device
• 2.0 kg
