EOD Suit 01

Product Information

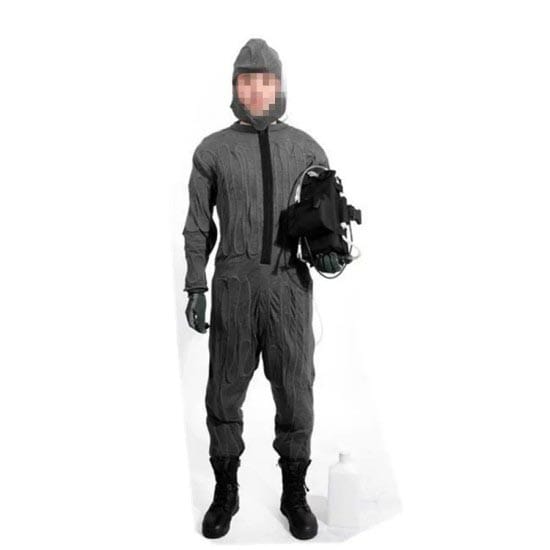

EOD01 is a high-performance explosion fragment protection equipment specially designed for military and high-risk environments. This system employs a three-layer composite armor material (aramid-PU outer layer, bulletproof fiber middle layer, and heat-resistant silicone inner layer), which can effectively resist the explosion impact and fragments of 82-2 standard grenades, with a protection radius of up to 3 meters. Suitable for scenarios such as bomb disposal operations, military exercises, and hazardous material transportation, it offers customized modular services (in terms of size, color, and function), with a lifecycle of up to 15 years.
Product catalog
High-Performance Military Aramid Bomb Explosive Disposal EOD 01 Suit
1. Basic Product Information
Product Name
EOD01
Model Number
ECS-1600-DW (Double Wall)
Primary Function
Military-grade explosive fragmentation containment and environmental protection
Compliance Standards
MIL-STD-810G, EN 13793:2003, NATO AEP-52 Vol.3
2. Physical Dimensions
Cover Blanket (Deployed)
1600±20mm (L) × 1600±20mm (W) × 12±2mm (Thickness)
Enclosure Structure
– Internal Diameter: ≥400mm
– Wall Configuration: 50mm spaced double-wall with shock-absorbing gel
– Height Adjustment: 300-600mm telescopic design
Folded Configuration
450mm (L) × 450mm (W) × 350mm (H) with quick-release compression straps
3. Material Composition
Outer Layer
1600D Aramid-PU hybrid weave with:
– UV stabilization (3000hr QUV test)
– Anti-static treatment (106-108Ω surface resistance)
Mid Layer
8mm cross-laminated polyethylene foam + Kevlar® mesh (320gsm)
Inner Layer
Silicone-coated fiberglass with:
– 600°C continuous heat resistance
– Chemical splash protection (acid/alkali pH2-12)
4. Mechanical Performance
Tensile Strength
Warp: 1380±30N / Weft: 1360±40N (ASTM D5034)
Tear Resistance
152N warp / 148N weft (ASTM D5587 trapezoid method)
Puncture Resistance
82J (ISO 13997 spike test)
5. Protective Performance
Explosion Containment
– Effective containment radius: 3000mm
– Protection height: 1700mm
– Tested with 82-2 standard grenade (6.5g PETN equivalent)
Environmental Resistance
– Waterproof: 14kPa hydrostatic pressure (72hr submersion)
– Temperature range: -40°C to +120°C operational
– Storage stability: -50°C to +150°C
6. Operational Data
Deployment Time
<30 seconds by trained personnel
Maintenance Requirements
– Annual visual inspection
– 5-year comprehensive service
– 200 folding cycles or 15-year material life
7. Packaging & Logistics
Shipping Configuration
– 2× IP67-rated polymer cases
– Case dimensions: 470mm × 470mm × 360mm
– Stackable design (max 4 high)
Weight Distribution
– System weight: 28.5kg (blanket 18.2kg + enclosure 10.3kg)
– Shipping weight: 32kg (with protective packaging)
Pallet Loading
– 8 systems per standard EURO pallet (1200×800mm)
– Maximum stack height: 2 pallets
8. Certification & Testing
Third-Party Certifications
– TÜV Rheinland (Explosive Containment Certificate No. ECC-2023-4578)
– DNV GL Marine Approval (MRS-04532)
– EMP Shielding Option: 30dB attenuation (1-18GHz)
Military Standards
NATO Stock Number available under ML-14 category
9. Optional Features
Sensor Integration
Pressure monitoring array (0-50psi range with Bluetooth telemetry)
Customization Options
– Color variants: Olive Drab (RAL 6003), Signal Orange (RAL 2004)
– Surface printing: Custom unit markings up to 4 colors
– Size variants: ECS-1400 (1400mm) and ECS-1800 (1800mm) available
