EOD R 04

Product Information

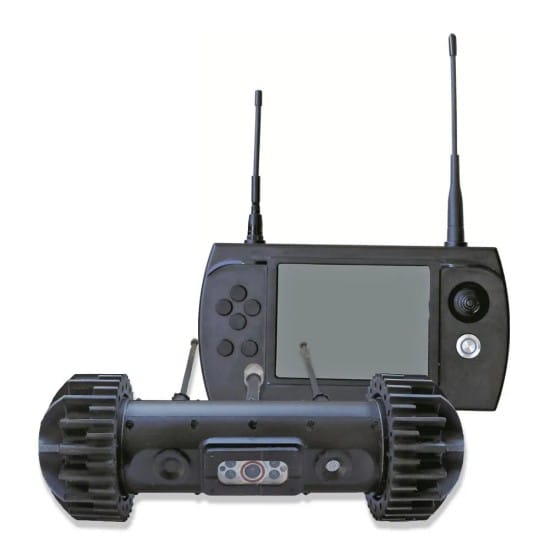

• EOD R 04 Robot
• is a small, lightweight thrown-type robot with low walking noise, mainly composed of two-wheeled, control terminals.
• The robot can be used to identify and locate the target, confirm the hostage status, detect the layout of the unit, etc. It can effectively increase detective efficiency.

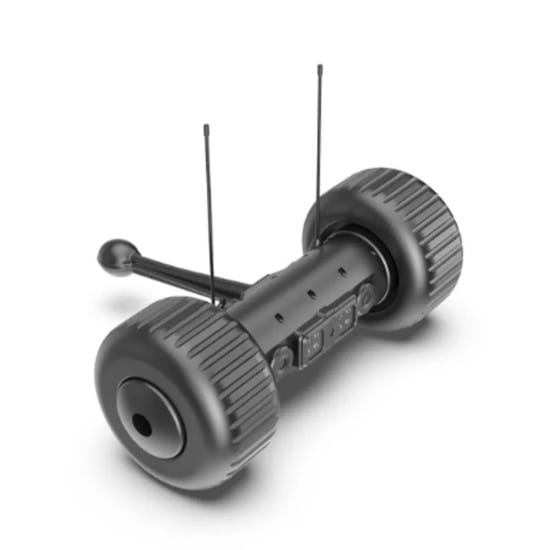

• Thrown Two-wheeled Robot — can be cast in the building or small space for reconnaissance operations, transmit the observation of video and audio data to the control terminal; equipped with infrared light module, can realize day and night reconnaissance; each product is equipped with two robots that can work independently.
• Product catalog
• EOD R 04 Details
• Item
• Specification
• Weight of the robot
• ≤900g (battery included)
• Measurements of the robot
• ≤250×100×100mm
• Traveling speed
• ≥0.65m/s
• Maximum climbing angle
• ≥35°
• Maximum unbreakable distance
• Vertical: ≥9m
• Horizontal: ≥20m
• Remote control distance
• Indoor: ≥30m(Ground)
• Outdoor:≥80m(Ground)
• Working time
• ≥2h
• Protecting Rate
• IP67
